    Adjustable Tilt Angle Solar Panel Mounting Bracket Kit with AL6005-T5 Bracket Material

    Ask Lasest Price
    Brand Name : Trip solar
    Model Number : /
    MOQ : 1 Pcs
    Delivery Time : Spot
    Supply Ability : 10000 Set/Sets per Month
    Price : $5.60/sets 10-499 sets
    • Product Details
    • Company Profile

    Adjustable Tilt Angle Solar Panel Mounting Bracket Kit with AL6005-T5 Bracket Material

    Trip solar——Professional Factory For Solar Energy Products Since 2012
    Products Description

    The triangular bracket is easy to install and has strong stability, and is widely used in tile roofs, cement planes, land, RVs, boats and other places.

    Its simple and solid triangular structure can make full use of the existing photovoltaic construction site, and the high-efficiency dense components greatly increase the installed capacity, truly achieving efficient utilization, energy saving and emission reduction.

    Adjustable Tilt Angle Solar Panel Mounting Bracket Kit with AL6005-T5 Bracket Material
    Adjustable Tilt Angle Solar Panel Mounting Bracket Kit with AL6005-T5 Bracket Material
    Adjustable Tilt Angle Solar Panel Mounting Bracket Kit with AL6005-T5 Bracket Material
    Adjustable Tilt Angle Solar Panel Mounting Bracket Kit with AL6005-T5 Bracket Material
    Three Specifications in stock：
    TP-TR01: 375*712*712mm
    TP-TR02: 525*1040*1040mm
    TP-TR03: 525*1140*1140mm
    Customization is available.

    Bolt:     set/box
    1.6X Quincunx bolt bolts, nuts andwashers
    2.4X M6*25 SUS304 bolts and nuts to connect the solar panel
    Product information
    Place of Origin
    Xiamen, China
    Brand Name
    Tripsoalr
    Model
    TP-TR
    Wind Load
    60m/s
    Snow Load
    1.5kn/m2

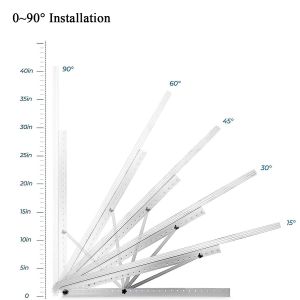

    Tilt Angle
    0-90 Degree
    Warranty
    10 YRS
    Material
    Aluminum
    Surface Treatment
    Anodized
    Color
    Nature or Black
    Duration
    25 YRS
    Packing
    1 Set/Carton
    Length
    712mm, 1040mm, 1140mm, 1180mm and So On
    Details
    Adjustable Tilt Angle Solar Panel Mounting Bracket Kit with AL6005-T5 Bracket Material
    Adjustable Tilt Angle Solar Panel Mounting Bracket Kit with AL6005-T5 Bracket Material
    Adjustable Tilt Angle Solar Panel Mounting Bracket Kit with AL6005-T5 Bracket Material
    Installation Site
    Adjustable Tilt Angle Solar Panel Mounting Bracket Kit with AL6005-T5 Bracket Material
    RV
    Adjustable Tilt Angle Solar Panel Mounting Bracket Kit with AL6005-T5 Bracket Material
    Balcony
    Adjustable Tilt Angle Solar Panel Mounting Bracket Kit with AL6005-T5 Bracket Material
    Carport
    Adjustable Tilt Angle Solar Panel Mounting Bracket Kit with AL6005-T5 Bracket Material
    Flat Roof
    Adjustable Tilt Angle Solar Panel Mounting Bracket Kit with AL6005-T5 Bracket Material
    Camping
    Adjustable Tilt Angle Solar Panel Mounting Bracket Kit with AL6005-T5 Bracket Material
    Boat
    Packaging & Delivery

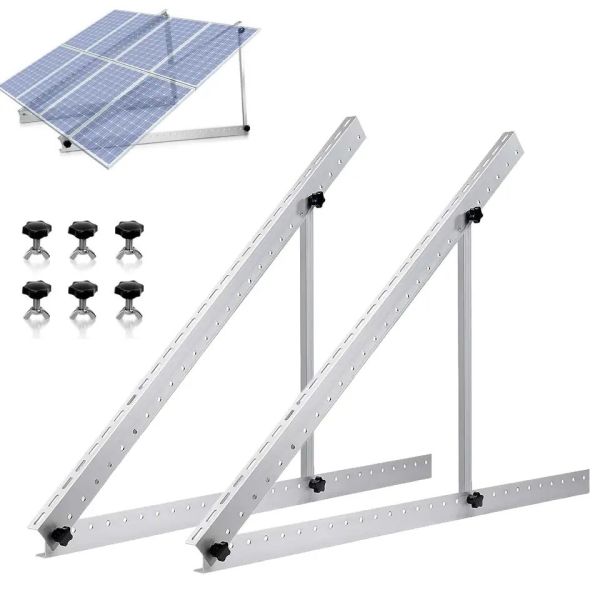

    One set includes: 4 Long Rails with Holes + 2 Short Rails + 6 Screws+4 M6*25 SUS304 Bolts

    There are three specifications in stock:
    1. long rail 1140mm, short rail 525mm
    2. long rail 1040mm, short rail 525mm
    3. long rail 712mm, short rail 375mm

    Estimated Dimension 1: 118*7*6 cm / set; 2.15 KG / set
    Estimated Dimension 2: 108*7*6 cm / set; 1.95 KG / set
    Estimated Dimension 3: 81*7*6 cm / set; 1.5 KG / set

    Different combo is also supported.
    Adjustable Tilt Angle Solar Panel Mounting Bracket Kit with AL6005-T5 Bracket Material
    Adjustable Tilt Angle Solar Panel Mounting Bracket Kit with AL6005-T5 Bracket Material
    Adjustable Tilt Angle Solar Panel Mounting Bracket Kit with AL6005-T5 Bracket Material
    Adjustable Tilt Angle Solar Panel Mounting Bracket Kit with AL6005-T5 Bracket Material
    Related Products
    Production & QC
    Adjustable Tilt Angle Solar Panel Mounting Bracket Kit with AL6005-T5 Bracket Material
    Adjustable Tilt Angle Solar Panel Mounting Bracket Kit with AL6005-T5 Bracket Material
    Adjustable Tilt Angle Solar Panel Mounting Bracket Kit with AL6005-T5 Bracket Material
    Adjustable Tilt Angle Solar Panel Mounting Bracket Kit with AL6005-T5 Bracket Material
    Company Profile
    Adjustable Tilt Angle Solar Panel Mounting Bracket Kit with AL6005-T5 Bracket Material
    Adjustable Tilt Angle Solar Panel Mounting Bracket Kit with AL6005-T5 Bracket Material
    Adjustable Tilt Angle Solar Panel Mounting Bracket Kit with AL6005-T5 Bracket Material
    About Trip Solar:
    Xiamen Tripsolar industry and trade Co., Ltd.. is a high-tech enterprise in solar PV field specializing in solar PV products with advanced technology and excellent service. Trip Solar members devote themselves to research, design, manufacture and sell the steady, trustable and cost-efficient solar PV mounting system solutions. As one of the largest PV solar products exporter in China, the pioneering Trip Solar products have been installed in more than 100 countries and regions since it established.

    Our Mission:
    Our mission is to provide the best renewable energy solution for every energy customer worldwide and deliver total
    solutions, excellent quality and customer satisfaction.

    Our Vision:
    Our vision is to become the preferred supplier of solar mounting systems (for residential & commercial scale projects) to solar installers both nationally and internationally.

    Our Goal:
    Our goal is to manufacture the best PV Mounting System in the industry, and to become a household name synonymous with superior quality, innovative excellence, system durability, time effectiveness.
    Adjustable Tilt Angle Solar Panel Mounting Bracket Kit with AL6005-T5 Bracket Material
    Adjustable Tilt Angle Solar Panel Mounting Bracket Kit with AL6005-T5 Bracket Material
    FAQ
    Q : Why choose us ?
    A : We are professional manufacturer, and we can provide the best product, competitive price and excellent service.

    Q : Is customization available ?
    A : Yes, according to your detailed drawings you provide or our design made by engineer according to your requirements.

    Q : What's your best price?
    A : It is according to your quantity and product detail, the price will be favorable with the mass quantity.

    Q : What about the delivery time?
    A : It depends on your order quantity and requirement. Usually 7-15 working days.

    Q : Can we visit your factory to inspect the goods for the order?
    A : Welcome to visit our factory to inspect the quality. We sincerely hope to establish a honest business relationship.

    If you have any interest in our products, please do not hesitate to contact me.
